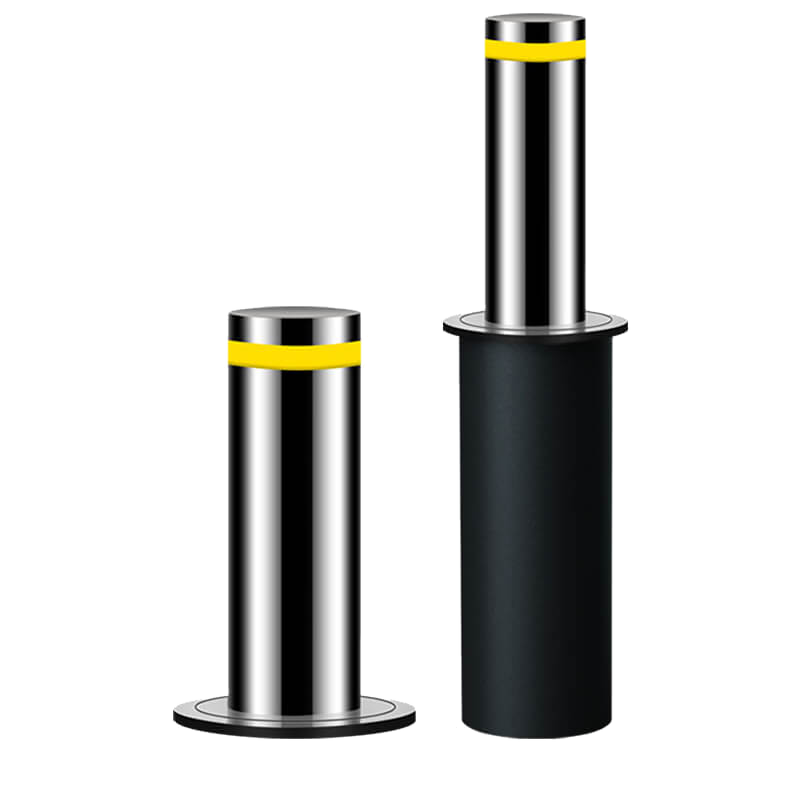

Intelligent Bollards
for Perimeter Security
304 Stainless Steel · Crash Certified · IP68 · Factory Direct
Test Reports
Installations
Factory Area
PROCOLUM is a technology enterprise integrating design, R&D, production, and sales of intelligent security solutions, headquartered in Tianhe District, Guangzhou. The company specializes in anti-terrorism bollards, road blockers, tire shredders, under-vehicle scanning systems, and intelligent perimeter high-voltage grid systems. Our 4,000m² modern manufacturing facility covers CNC machining, welding assembly lines, electrical testing zones, and warehousing for full-process in-house production.
Products have passed real-vehicle crash tests by the Ministry of Public Security, meeting GA/T1343-2016 Grade A and B standards, with ISO 9001 Quality Management, Environmental Management, and Occupational Health & Safety certifications. Adhering to ‘Quality First, Customer Supreme,’ we have accumulated over 6,000 installations nationwide covering government facilities, military bases, airports, industrial parks, schools, hospitals, commercial plazas, transportation hubs, and energy infrastructure.
Engineered for Reliability
Security strength backed by data, not claims
GA Certified
Real-vehicle crash test certified by Ministry of Public Security, meeting GA/T1343-2016 A/B standards
Source Factory
4,000m² integrated facility covering design, R&D, production & sales. End-to-end quality control
304 Stainless Steel
Full 304 stainless steel construction, IP68 rated, corrosion & extreme temperature resistant
Nationwide Service
6,000+ installations nationwide, professional deployment teams, 24/7 after-sales support
Complete Bollard Range
Multiple specifications for every security level and application scenario

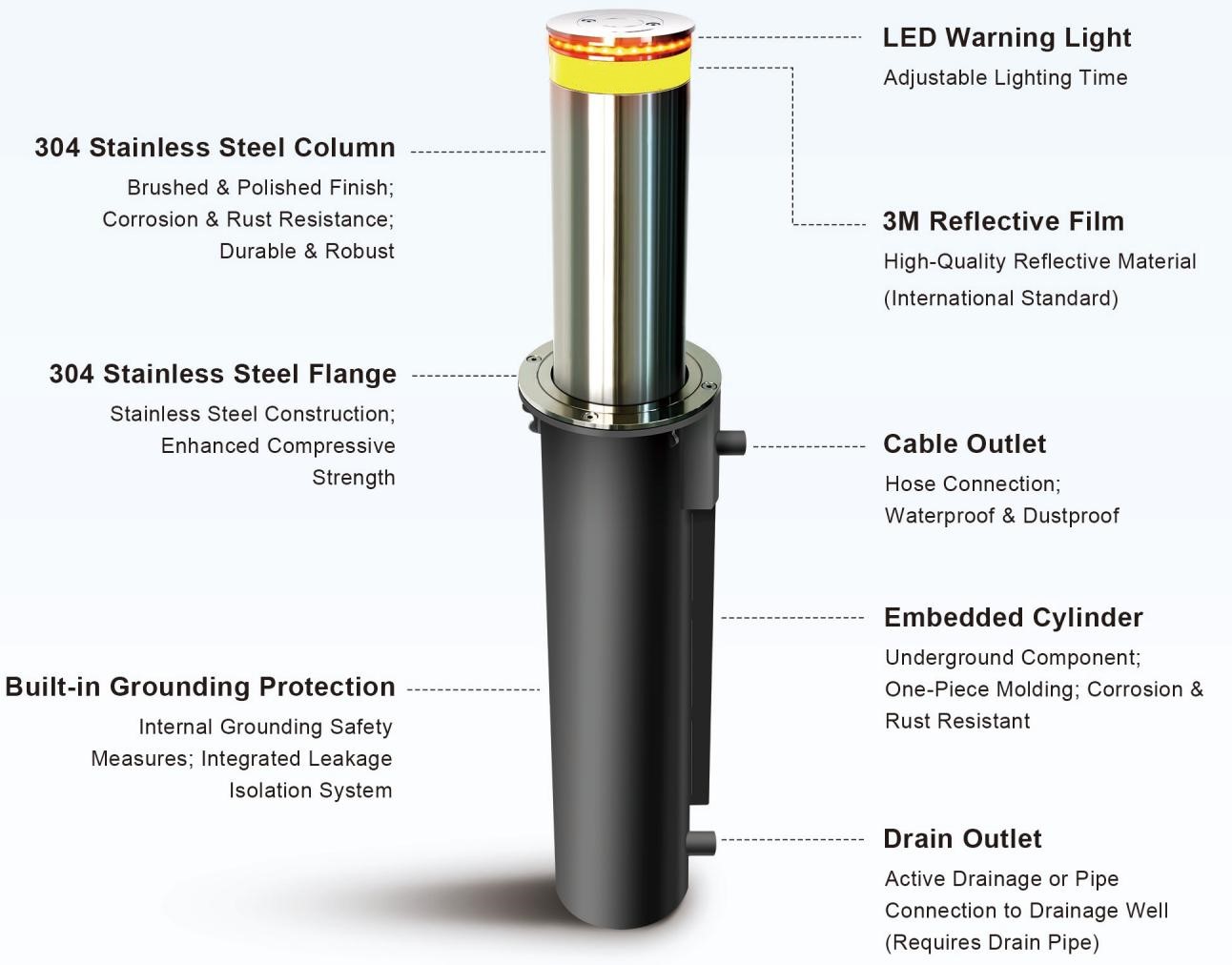

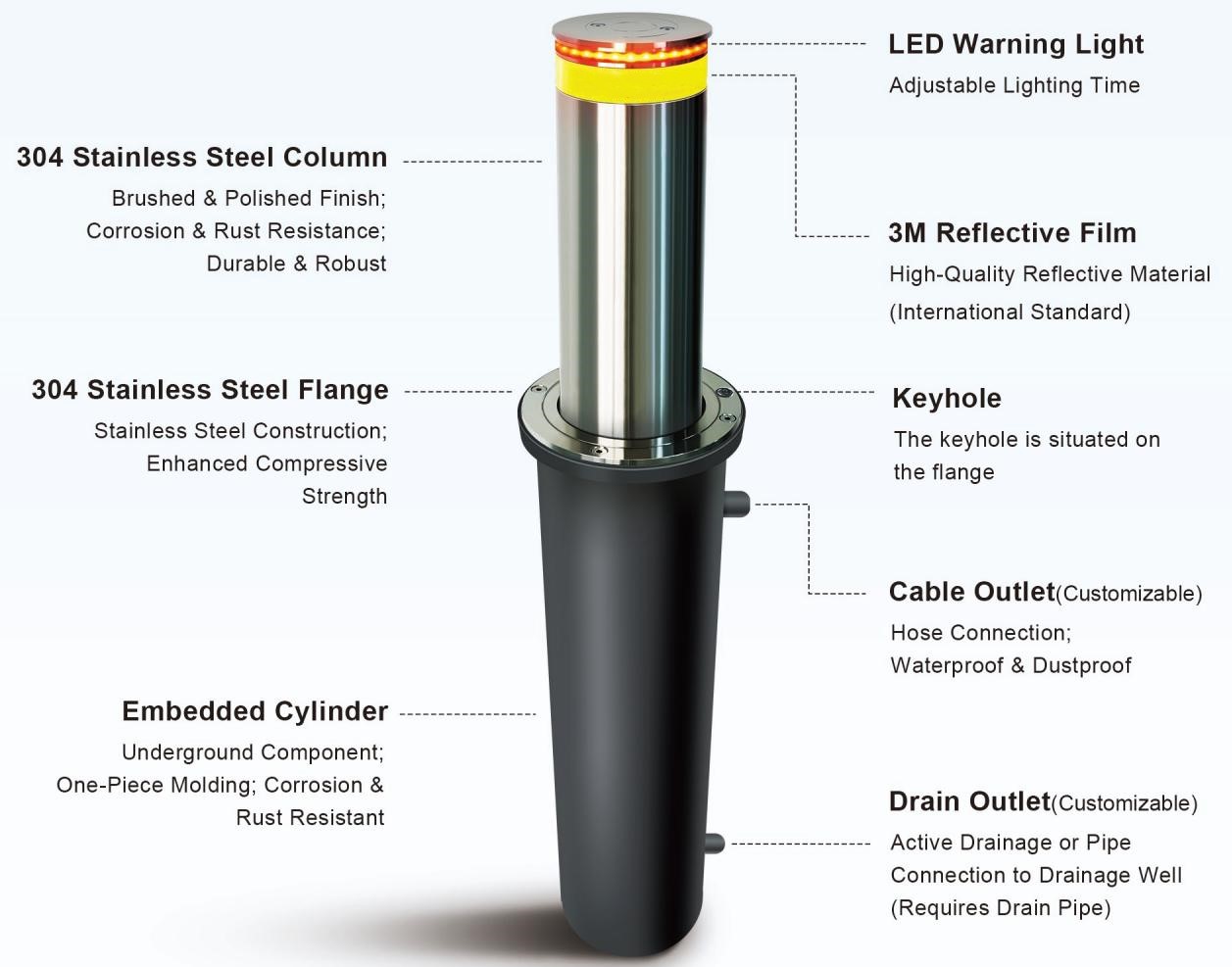

PM-HLC-S804B PM-HLC-S804B Hydraulic Lifting Column
Full Automatic · Electro-Hydraulic · IP68
PROCOLUM PM-HLC-S804B Hydraulic Lifting Column features an electro-hydraulic integrated drive system with 304 stainless steel body and IP68 protection. Column diameter 219mm, lifting height 600mm, rising speed ≤4.5s, descending speed ≤2.5s. 3-ton crash tested, KKS lock anti-theft, emergency power equipped. Suitable for 40ft container trucks and 40-ton vehicles. Operating temperature -35℃~75℃.
PM-HLC-S804C PM-HLC-S804C Hydraulic Lifting Column
Electro-Hydraulic · High Load · Mold Integrated
PROCOLUM PM-HLC-S804C Hydraulic Lifting Column with electro-hydraulic drive, 304~201 stainless steel composite pipe. Mold-cast steel integrated panel with electroplating finish and anti-slip texture. Pre-embedded height 807.5mm, lifting height 600mm, rising ≤4s, descending ≤2s. Handles 40-ton trucks, IP68 rated. Bottom drainage design, intelligent obstacle detection, emergency power supply.

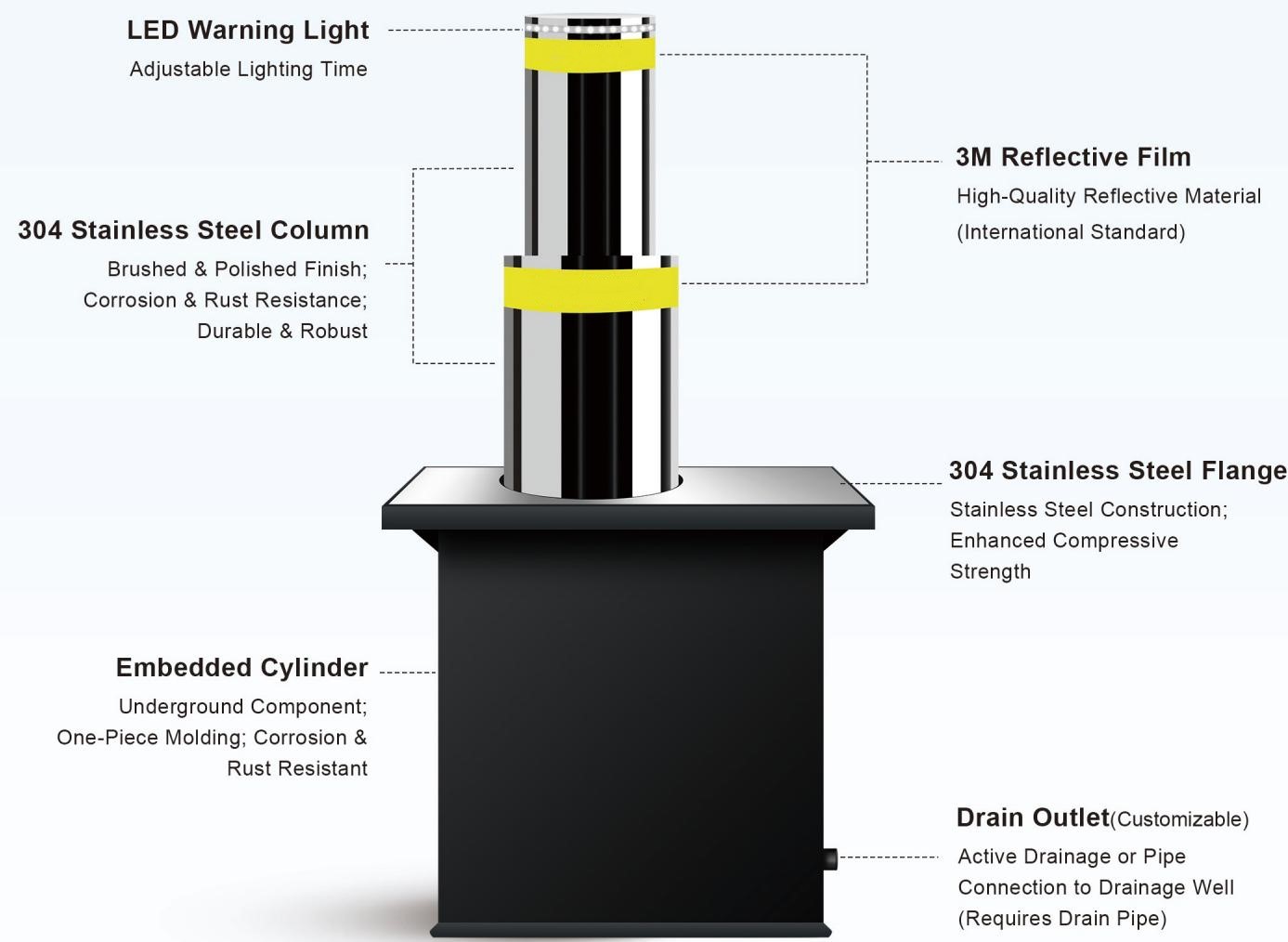

PM-SLC-601 PM-SLC-601 Split Lifting Column
Split Design · Flexible Installation · Multi-Scenario
PROCOLUM Split Lifting Column features a separated drive unit and column body design, ideal for confined spaces and special terrain. 304 stainless steel body, IP68 rated. Supports remote/card/sensor control methods. Customizable column height for parking lots, communities, schools, hospitals and more.

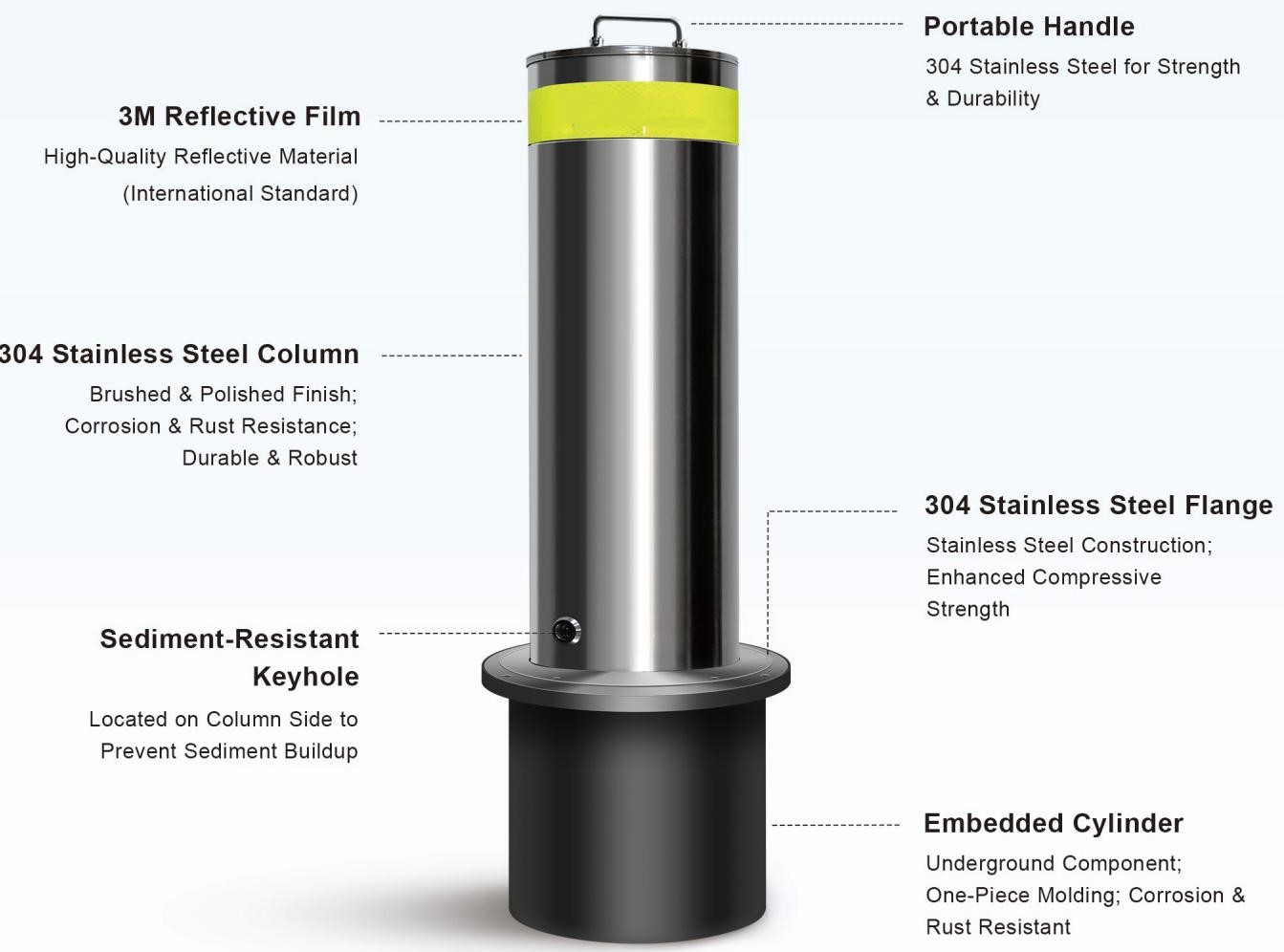

PM-MB-301 PM-MB-301 Portable Manual Bollard
Portable · Tool-Free · Instant Deployment
PROCOLUM Portable Manual Bollard requires no electrical drive, operating on mechanical principles. Portable design for flexible deployment in temporary isolation and traffic guidance. Lightweight and easy to transport with 3M reflective strips for night visibility. Ideal for temporary control zones, event perimeters, and emergency deployment.
PM-FC-201 PM-FC-201 Fixed Anti-Collision Column
Embedded Fixed · Permanent · High Impact Resistance
PROCOLUM Fixed Anti-Collision Column uses embedded permanent installation for maximum stability. 304 stainless steel with high impact resistance, load capacity ≥1500KG. 3M reflective strips for night visibility. Ideal for permanent isolation zones, building entrance protection, and parking lot zoning. Zero maintenance — the most cost-effective permanent physical barrier.

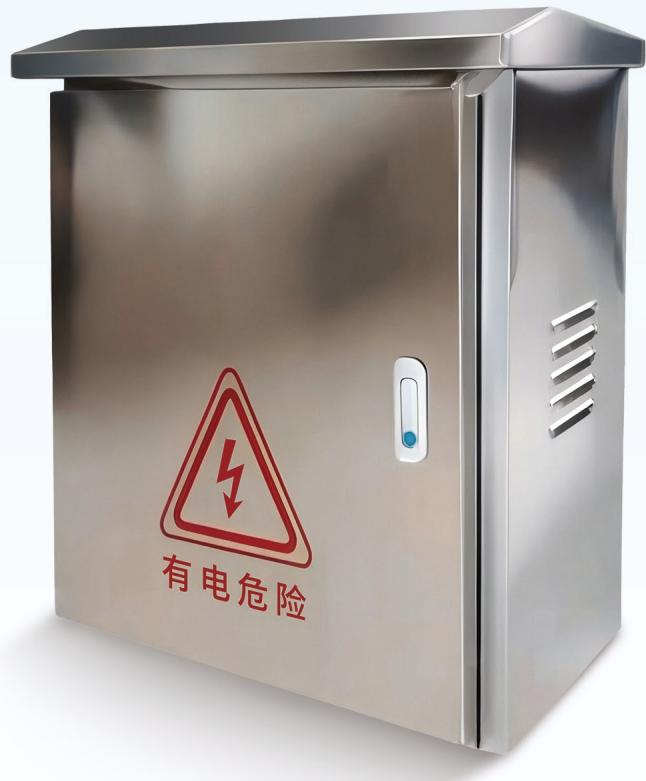

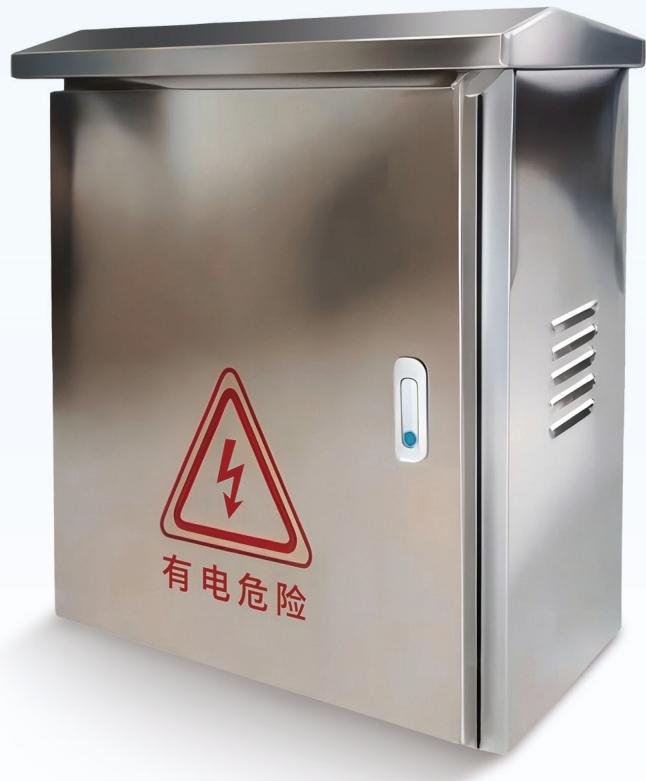

PM-ICS-101 PM-ICS-101 Intelligent Control System
Integrated Control · Remote Management · Multi-Device Linkage
PROCOLUM Intelligent Control System integrates control unit supporting remote, card, and sensor control methods. Built-in power management module, IP65 waterproof and dustproof. Remote monitoring and alarm functions. Coordinates multiple bollards with deep integration for access control, LPR, and video surveillance. Operating temperature -20℃~+60℃.
Deployed Across Critical Infrastructure
6,000+ proven installations from government to commercial sites

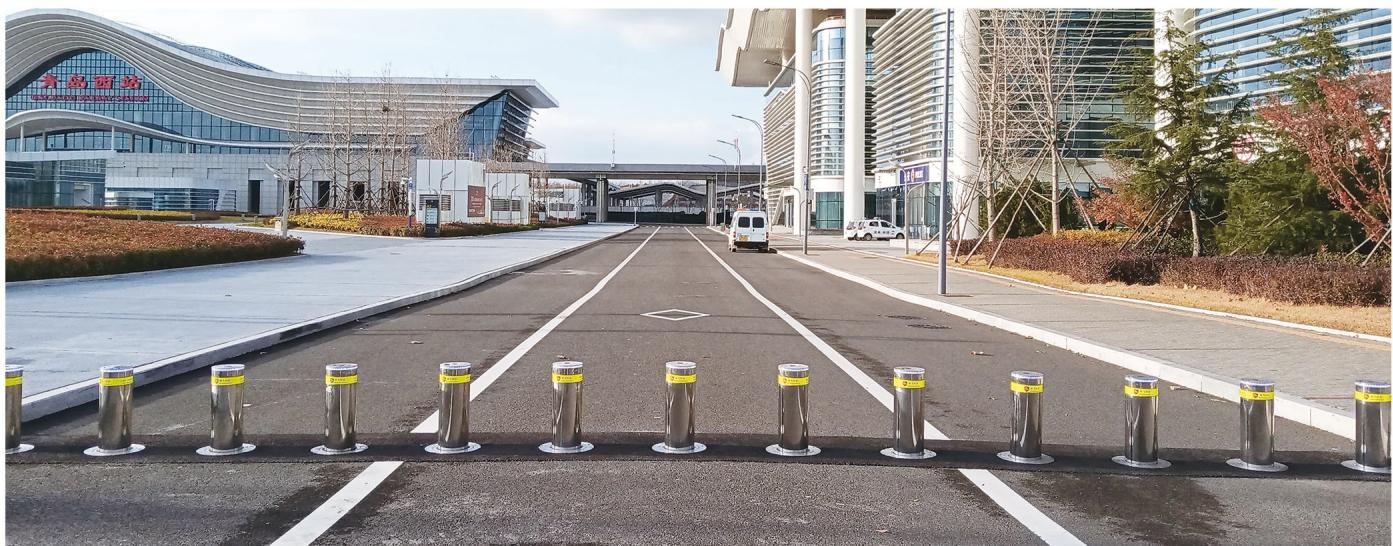

Vehicle Access Control
Designed for main entrances of government buildings, corporate campuses, schools, and hospitals, our full-auto bollards integrate deeply with license plate recognition, facial recognition, and visitor management systems. When an authorized vehicle approaches, the system automatically identifies it and lowers the bollard — the column rises back after the vehicle passes, requiring zero manual intervention. In the event of unauthorized forced entry, the 304 stainless steel column effectively intercepts and absorbs impact energy, buying critical response time for security personnel. Supports remote control, mobile APP, and PC management platform, with real-time status monitoring and full access history logging. Widely deployed at government compounds, military checkpoints, high-speed rail plazas, and university campus entrances.

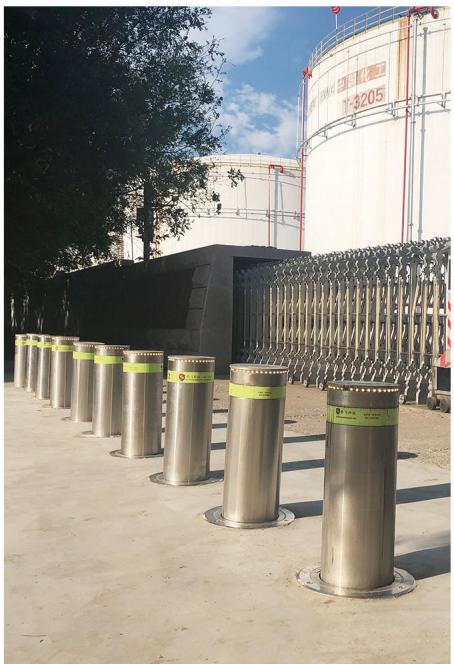

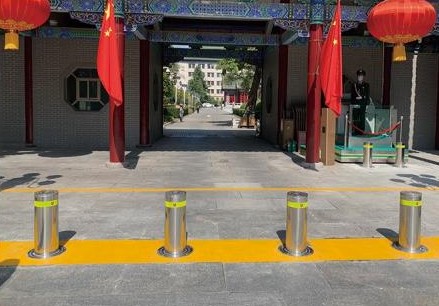

Multi-Bollard Perimeter Protection
For military bases, prisons, airports, chemical plants, nuclear facilities, and other high-security sites, a single bollard cannot meet layered defense requirements. PROCOLUM's synchronized multi-bollard solution supports up to 18 columns operating in unison, forming three physical defense lines when combined with road blockers and tire shredders. The control system features built-in anti-ram logic — when an abnormal impact is detected at the first defense line, downstream lines automatically enter maximum alert and columns rise within 1.5 seconds. The system integrates with infrared beams, electronic fences, and CCTV surveillance to build a 24/7 gapless perimeter protection network. Ideal for border checkpoints, ammunition depots, data centers, and substations.

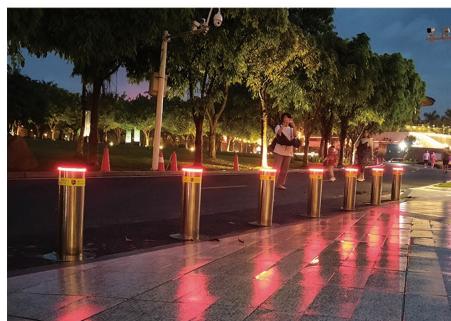

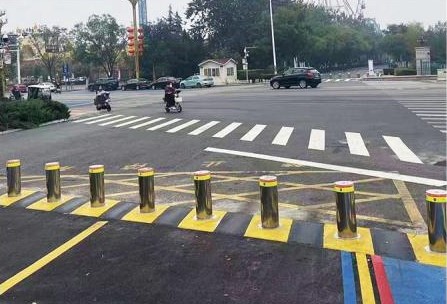

Plaza & Passage Security
Shopping plazas, pedestrian streets, scenic area entrances, and urban public spaces demand security without compromising aesthetics or foot traffic flow. PROCOLUM deploys a hybrid strategy: fixed columns define permanent no-vehicle zones along the perimeter, while automatic columns operate on time-based schedules — lowered during daytime for pedestrian access, raised at night to restrict vehicle entry. Column surfaces feature brushed and polished finishes, with optional custom colors (gold, black, etc.) to harmonize with surrounding architecture. 3M Diamond Grade reflective film ensures clear nighttime visibility, and programmable LED light strips serve dual roles as warning indicators and path guidance. Successfully implemented at major commercial landmarks including Wanda Plaza, Taikoo Li, and OCT properties.

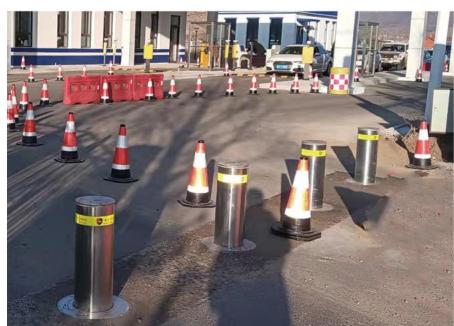

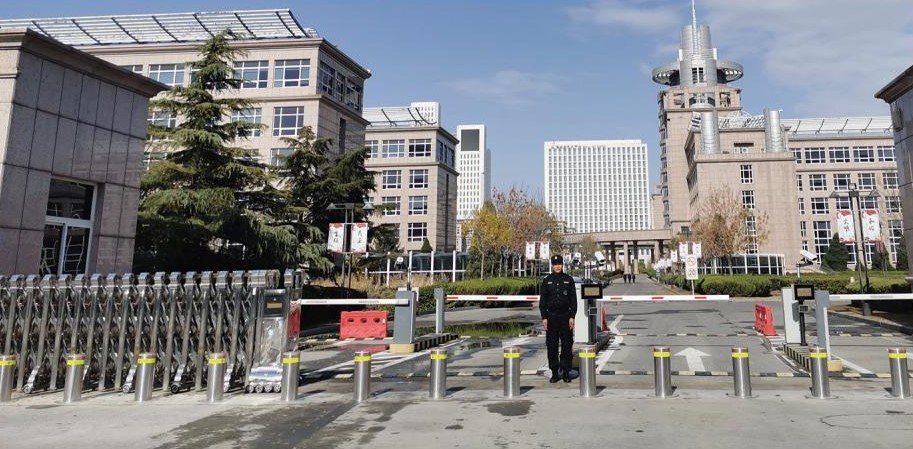

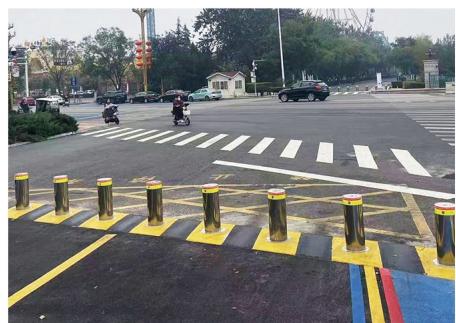

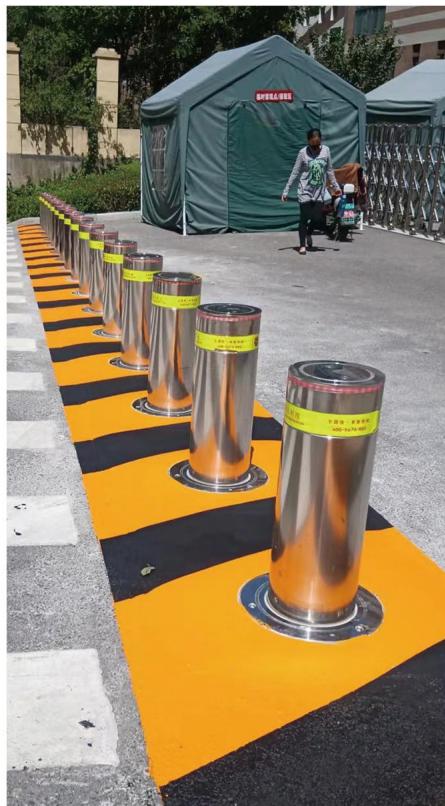

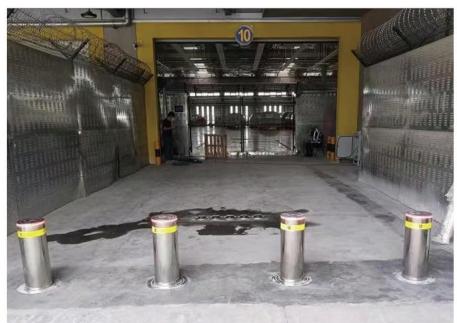

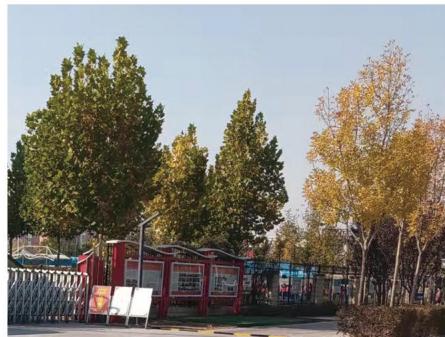

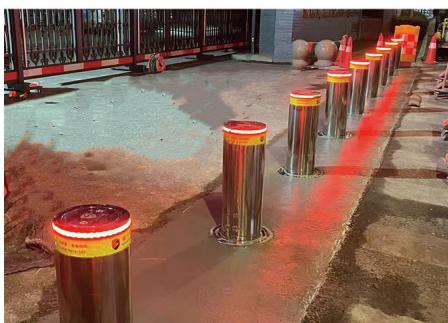

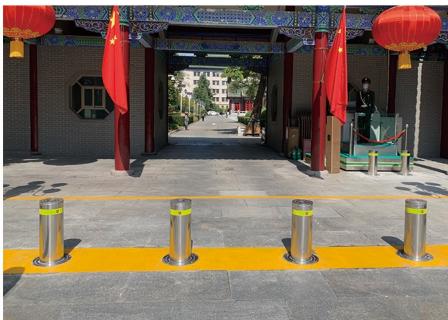

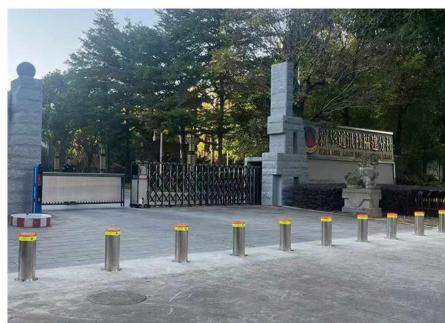

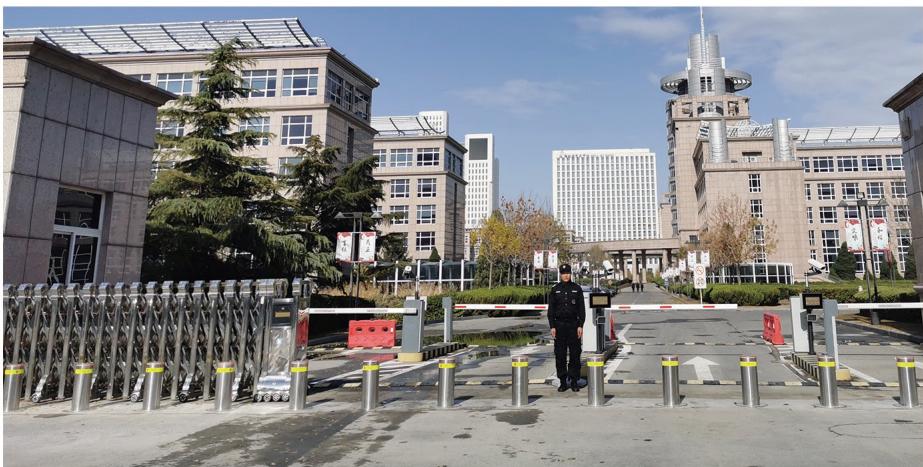

Nationwide Project Cases
PROCOLUM has deployed over 6,000 bollards and supporting security equipment across all 34 provincial-level administrative regions in China, covering government compounds, military barracks, police checkpoints, high-speed rail plazas, university campuses, 5A-rated scenic areas, luxury residential communities, industrial parks, and logistics warehouse facilities. Every column undergoes a 72-hour continuous burn-in test and 5 full-stroke lift cycle inspections before leaving the factory. Professional installation teams use laser levels and concrete strength testers to ensure embedment accuracy within ±3mm tolerance. Our 7x24 after-sales service network covers all major cities nationwide, with a fault response time under 4 hours and lifetime technical support.
Frequently Asked Questions
Find answers to common questions about our bollards
What material are PROCOLUM bollards made of?
All bollards feature 304 stainless steel columns with brushed & polished finish. Outer barrels are Q235 carbon steel. Wall thickness customizable at 6/8/10/12mm.
What is the IP rating of the bollards?
Full automatic and semi-automatic bollards are IP68 rated. Intelligent control system is IP66 rated.
What control methods are supported?
Supports remote control, manual button, mobile APP, and PC control. Also integrates with access control, license plate recognition, and surveillance systems.
What preparations are needed for installation?
Requirements: ≥C25 concrete foundation; drainage pipes or well; pre-buried cables for automatic models; control cabinet location. Professional installation recommended.
What is the expected service life?
Under normal use and maintenance, PROCOLUM bollards are designed for 10+ years. Automatic bollards achieve 5,000 continuous lift cycles without failure.
What is the warranty policy?
PROCOLUM provides nationwide warranty service. Products are quality guaranteed from purchase date. Professional installation teams and 24/7 after-sales response.
